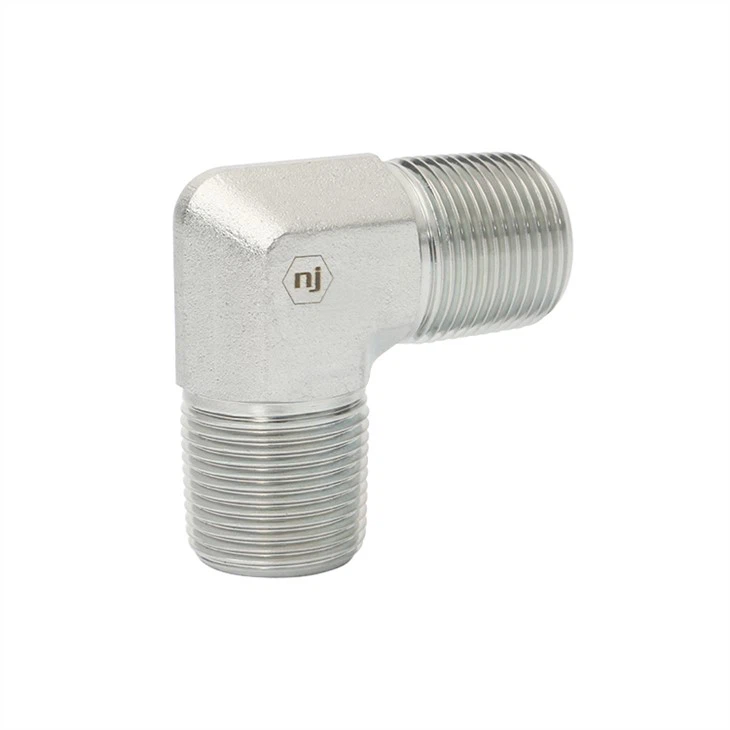

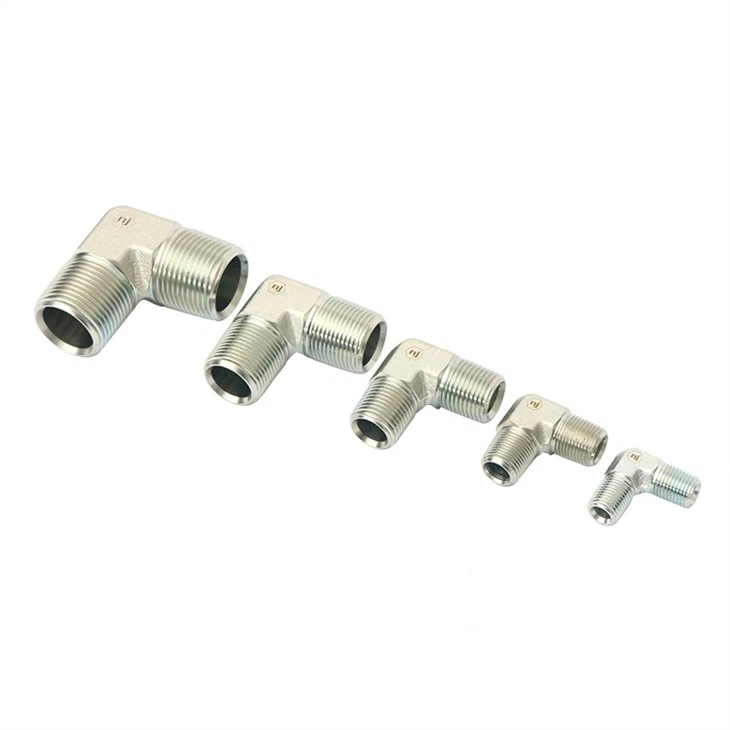

Ffitiadau Edau Penelin BSPT 90 gradd
Deunydd: Dur
Siâp: 90 penelin
Edau 1 Math: BSPT Gwryw
Ffitiadau Edau Penelin BSPT 90 gradd
Rhif Rhan:
1T9
Nodweddion:
Deunydd: Dur
Siâp: 90 penelin
Edau 1 Math: BSPT Gwryw
Edau 2 Math: BSPT Gwryw
Edau | Edau | Rhan Rhif | E | F | S1 | ||
Dash | BSPT | Dash | BSPT | mm | mm | mm | |
-02 | 1/8-28 | -02 | 1/8-28 | 1T9-0202 | 21 | 21 | 11 |
-04 | 1/4-19 | -02 | 1/8-28 | 1T9-0402 | 24 | 26 | 14 |
-04 | 1/4-19 | -04 | 1/4-19 | 1T9-0404 | 26 | 26 | 14 |
-06 | 3/8-19 | -04 | 1/4-19 | 1T9-0604 | 27 | 29 | 14 |
-06 | 3/8-19 | -06 | 3/8-19 | 1T9-0606 | 29 | 29 | 16 |
-08 | 1/2-14 | -04 | 1/4-19 | 1T9-0804 | 31 | 36 | 22 |
-08 | 1/2-14 | -06 | 3/8-19 | 1T9-0806 | 33 | 36 | 22 |
-08 | 1/2-14 | -08 | 1/2-14 | 1T9-0808 | 36 | 36 | 22 |
-12 | 3/4-14 | -08 | 1/2-14 | 1T9-1208 | 40 | 44 | 27 |
-12 | 3/4-14 | -12 | 3/4-14 | 1T9-1212 | 44 | 44 | 27 |
-16 | 1-11 | -12 | 3/4-14 | 1T9-1612 | 48 | 50 | 33 |
-16 | 1-11 | -16 | 1-11 | 1T9-1616 | 50 | 50 | 33 |
-20 | 1.1/4-11 | -12 | 3/4-14 | 1T9-2012 | 57 | 52 | 41 |
-20 | 1.1/4-11 | -16 | 1-11 | 1T9-2016 | 57 | 58 | 41 |
-20 | 1.1/4-11 | -20 | 1.1/4-11 | 1T9-2020 | 58 | 58 | 41 |
-24 | 1.1/2-11 | -24 | 1.1/2-11 | 1T9-2424 | 63 | 63 | 48 |
Mae Ffitiadau Edau Penelin 90 gradd BSPT yn unol â safon sefydliad Prydeinig BS5200 yr un fath â safon ISO B434-6. Mae Ffitiadau Edau Penelin 90 gradd 90 gradd yn gryfder pen uchel, perfformiad sefydlog a chyflymder cysylltiad cyflym.
